Air Hammers

Air Hammers

MODEL Shank Opening Stroke Speed Strok Length Net Weight Vibration Noise Level Average Air Cons. @Load Overall Length Air Inlet NPTF Hose Size
inch(mm) bpm inch mm lb kg m/s2 dBA cfm L/min inch mm inch inch mm
TPT-684N 0.401(10.2) 3,200 2.6 67 4.4 2.0 6.3 99 14.9 424 6.8 173 1/4 3/8 10
TPT-684NH 0.401(10.2) hex 3,200 2.6 67 4.4 2.0 6.3 99 14.9 424 6.8 173 1/4 3/8 10
TPT-685N 0.401(10.2) 2,100 3.5 89 5.0 2.3 6.8 99 14.9 424 8.8 223 1/4 3/8 10
TPT-685NH 0.401(10.2) hex 2,100 3.5 89 5.0 2.3 6.8 99 14.9 424 8.8 223 1/4 3/8 10
TPT-686 0.401(10.2) 3,000 2.4 60 3.3 1.5 6.3 95 14.9 424 7.9 200 1/4 3/8 10
TPT-686H 0.401(10.2) hex 3,000 2.4 60 3.3 1.5 6.3 95 14.9 424 7.9 200 1/4 3/8 10
TPT-930 0.68(17.3) 2,400 3.0 77 17.6 8.0 - 104 33.9 960 14.4 365 1/4 3/8 10
TPT-930H 0.58(14.7) hex 2,400 3.0 77 17.6 8.0 - 104 33.9 960 14.4 365 1/4 3/8 10
TPT-931 0.68(17.3) 1,920 3.7 94 18.7 8.5 - 104 33.2 940 15.7 400 3/8 3/8 10
TPT-931H 0.58(14.7) hex 1,920 3.7 94 18.7 8.5 - 104 33.2 940 15.7 400 3/8 3/8 10
TPT-932 0.68(17.3) 1,550 4.0 102 19.8 9.0 - 104 30.4 860 16.7 425 3/8 3/8 10
TPT-932H 0.58(14.7) hex 1,550 4.0 102 19.8 9.0 - 104 30.4 860 16.7 425 3/8 3/8 10
TPT-928 - 7,000 1.5 38 5.1 2.3 - 101 5.0 141 22.0 560 1/4 3/8 10
TPT-929 - 2,400 1.0 26 8.8 4.0 - 104 11.5 326 21.7 550 3/8 3/8 10
TPT-919 8mm 5,400 1.2 31 0.9 0.4 - 96 3.0 85 6.7 170 1/4 3/8 10

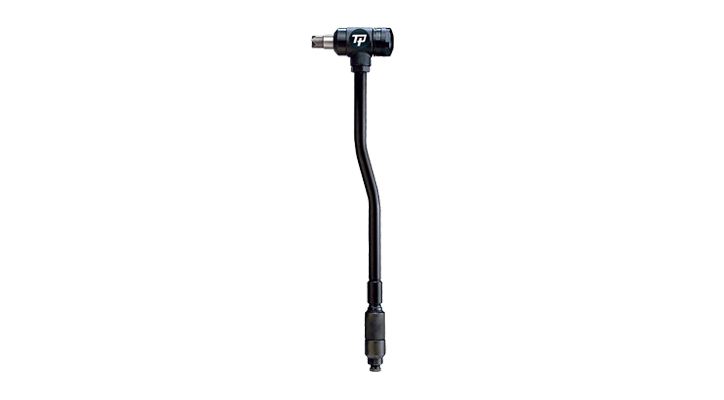

  • TPT-928

    TPT-928

    Air Scaling Hammer

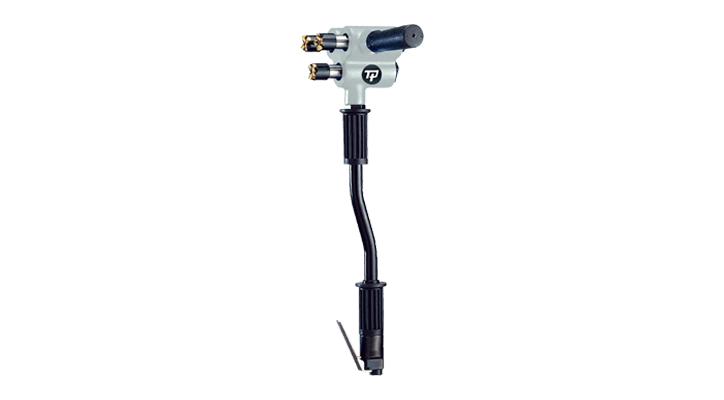

  • TPT-929

    TPT-929

    Air Scaling Hammer

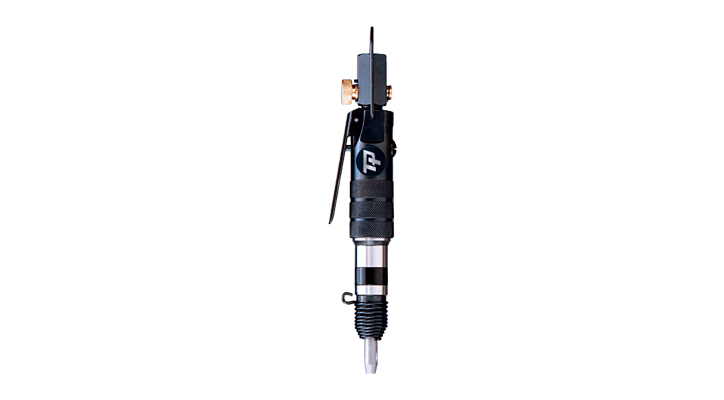

  • TPT-919

    TPT-919

    Air Riveting Hammer
