Pistol Type-Bit Shank
전체메뉴
- TP
- Du-Pas
| MODEL | Hex Size | Bolt Capacity | Torque Range 5~6kg/cm2 | Bit Shank | Free Speed | Weight | Length | Noise Level | Average Air Cons. @Load | Hose size | Shut off | ||
| mm(inch) | N.m (ft-lb) | mm | 5kg/cm2 | 6kg/cm2 | kgs | mm | dB(A) | m3/min | ft3/min | mm | N/A | ||
| TDIS-70DX | 6.35(1/4") | M8-M10 | 26-44(19.1-32.4) | 9 | 5200 | 5400 | 1.08 | 192 | 82 | 0.43 | 15.2 | 8 | A |
| TDI-70DX | 6.35(1/4") | M8-M10 | 26-44(19.1-32.4) | 9 | 5200 | 5400 | 1.05 | 192 | 82 | 0.43 | 15.2 | 8 | N |
| TDIS-70D | 6.35(1/4") | M10 | 29-47(21.4-34.6) | 9 | 6900 | 7200 | 1.35 | 197 | 82 | 0.45 | 15.9 | 8 | A |
| TDI-70D | 6.35(1/4") | M10 | 29-47(21.4-34.6) | 9 | 6900 | 7200 | 1.33 | 197 | 82 | 0.45 | 15.9 | 8 | N |
| TDIS-65D | 6.35(1/4") | M8-M10 | 23-38(16.9-28) | 9 | 4500 | 4800 | 1.08 | 192 | 82 | 0.43 | 15.2 | 8 | A |
| TDI-65D | 6.35(1/4") | M8-M10 | 23-38(16.9-28) | 9 | 4500 | 4800 | 1.05 | 192 | 82 | 0.43 | 15.2 | 8 | N |
| TDIS-60D | 6.35(1/4") | M8 | 18-30(13.3-22.1) | 9 | 5900 | 6200 | 1 | 181 | 82 | 0.4 | 14.1 | 8 | A |
| TDI-60D | 6.35(1/4") | M8 | 18-30(13.3-22.1) | 9 | 5900 | 6200 | 0.97 | 181 | 82 | 0.4 | 14.1 | 8 | N |
| TDI-60DX | 6.35(1/4") | M8 | 18-30(13.3-22.1) | 9 | 5900 | 6200 | 0.8 | 150 | 82 | 0.4 | 14.1 | 8 | N |
| TDIS-50D | 6.35(1/4") | M8 | 13-26(9.6-19.2) | 9 | 6800 | 7200 | 0.92 | 170 | 80 | 0.35 | 12.3 | 6.5 | A |
| TDI-50D | 6.35(1/4") | M8 | 13-26(9.6-19.2) | 9 | 6800 | 7200 | 0.9 | 170 | 80 | 0.35 | 12.3 | 6.5 | N |
| TDI-50DX | 6.35(1/4") | M8 | 13-26(9.6-19.2) | 9 | 6800 | 7200 | 0.74 | 139 | 80 | 0.35 | 12.3 | 6.5 | N |
| TDIS-40D | 6.35(1/4") | M6-M8 | 9-18(6.6-13.3) | 9 | 4300 | 4600 | 0.92 | 170 | 78 | 0.25 | 8.8 | 6.5 | A |
| TDI-40D | 6.35(1/4") | M6-M8 | 9-18(6.6-13.3) | 9 | 4300 | 4600 | 0.9 | 170 | 78 | 0.25 | 8.8 | 6.5 | N |
| TDI-40DX | 6.35(1/4") | M6-M8 | 9-18(6.6-13.3) | 9 | 4300 | 4600 | 0.74 | 139 | 78 | 0.25 | 8.8 | 6.5 | N |
| TDIS-30D | 6.35(1/4") | M6 | 5.5-13(4.1-9.6) | 9 | 4300 | 4600 | 0.89 | 163 | 78 | 0.25 | 8.8 | 6.5 | A |
| TDI-30D | 6.35(1/4") | M6 | 5.5-13(4.1-9.6) | 9 | 4300 | 4600 | 0.87 | 163 | 78 | 0.25 | 8.8 | 6.5 | N |
| TDI-30DX | 6.35(1/4") | M6 | 5.5-13(4.1-9.6) | 9 | 4300 | 4600 | 0.72 | 133 | 78 | 0.25 | 8.8 | 6.5 | N |
* Shut off type: N: Non Shut-off; A: Auto Shut-off

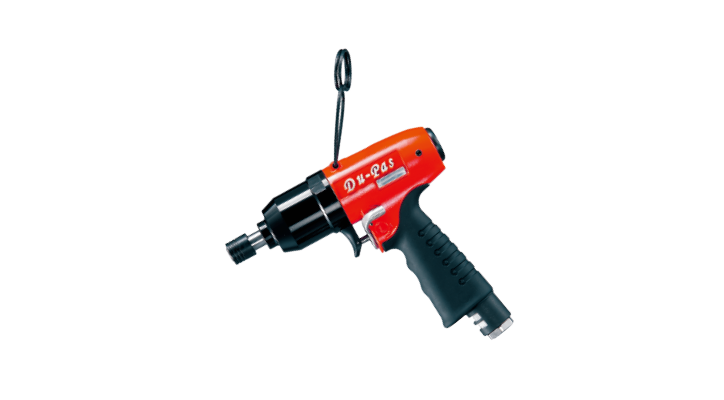

TDIS-30D
TDI-30D

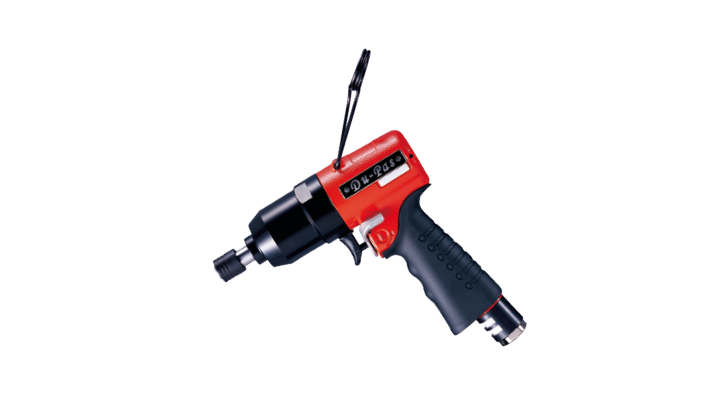

TDI-30DX
