TDW Series

Model	Drive	Free Speed	Bolt Capacity	Working Torque (3 secs in forward)		Max. Torque (5 secs in reverse)		Weight		Overall Length		Noise Level	Air Cons.	Air Inlet	Hose Size	Vibration Level
Model	inch	rpm	mm	Nm	ft-lb	Nm	ft-lb	lb	kg	inch	mm	dBA	I/min	inch	inch	m/s²
TDW-757	1/4" F/Hex	8,000	M5-M6	10-45	7-33	88	65	2.2	1	7.8	201	92	80	1/4"	1/4"	5.6
TDW-757S3	3/8"	8,000	M6-M8	10-50	7-37	88	65	2.2	0.98	7.5	193	92	80	1/4"	1/4"	5.6

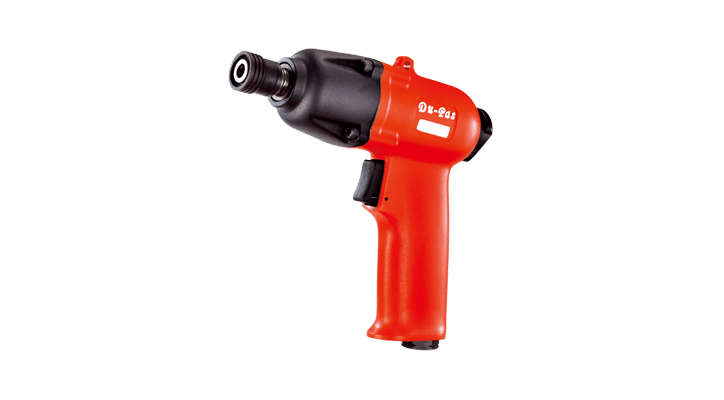

TDW-767	1/4" F/Hex	8,000	M5-M6	10-45	7-33	88	65	2.5	1.15	6.6	168	87	95	1/4"	1/4"	5.3
TDW-767S3	3/8"	8,000	M6-M8	10-50	7-37	88	65	2.5	1.12	6.2	159	87	95	1/4"	1/4"	5.3

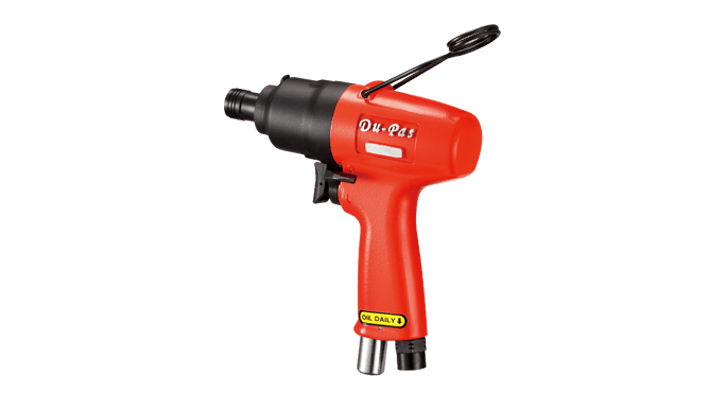

TDW-777	1/4" F/Hex	8,000	M6	10-40	7-30	79	58	2	0.9	6	155	82	80	1/4"	1/4"	5
