Riveters / Nut Setters / Air Tappers

Riveters / Nut Setters / Air Tappers

TPT-695 / 696

MODEL Piston Stroke Traction Power Capacity Net Weight Overall Length Noise Level Average Air Cons. @Load Air Inlet NPTF Hose Size
mm Kg-f inch mm lb kg inch mm dBA cfm L/min inch inch mm
TPT-695 16 850 3/32 - 3/16 2.4 - 4.8 3.3 1.5 10.7 273 71 0.04 1 1/4 3/8 10
TPT-696 16 1,250 5/32 - 1/4 4 - 6.4 4.0 1.8 11.7 298 77 0.06 2 1/4 3/8 10


 NEW  TPT-774H

MODEL Pulling Size Free Speed Net Weight Overall Length Noise Level Average Air Cons. @Load Air Inlet NPTF Hose Size
mm rpm lb kg inch mm dBA cfm L/min inch inch mm
TPT-774H-32M4 M3. M4 3,200 2.6 1.2 7.0 177 80 8.8 250 1/4 3/8 10
TPT-774H-20M6 M5. M6 2000 2.6 1.2 7.0 177 80 8.8 250 1/4 3/8 10
TPT-774H-08M8 M6. M8 800 3.1 1.4 7.7 195 80 8.8 250 1/4 3/8 10
TPT-774H-04M10 M8. M10 400 3.1 1.4 7.7 195 80 8.8 250 1/4 3/8 10


 NEW  TPT-775 / 776 B

MODEL Tapping Capacity Free Speed Shaft Type Net Weight Overall Length Noise Level Air Consumption@free speed Air Inlet NPTF Hose Size
Steel Aluminum
mm inch mm inch rpm B/JT lb kg inch mm dBA cfm L/min inch inch mm
TPT-775B-330 M12 1/2 M14 9/16 330 B-12 3.58 1.63 8.5 215 82 4.3 121 1/4 3/8 10
TPT-775B-700 M12 1/2 M14 9/16 700 B-12 3.63 1.64 8.5 215 82 4.3 121 1/4 3/8 10
TPT-776B-330 M12 1/2 M14 9/16 330 B-12 3.21 1.46 10.6 270 84 4.3 121 1/4 3/8 10
TPT-776B-700 M12 1/2 M14 9/16 700 B-12 3.26 1.48 10.6 270 84 4.3 121 1/4 3/8 10



 NEW  TPT-775 / 776 C

MODEL Tapping Capacity Free Speed Shaft Type Net Weight Overall Length Noise Level Air Consumption@free speed Air Inlet NPTF Hose Size
Steel Aluminum
mm inch mm inch rpm B/JT lb kg inch mm dBA cfm L/min inch inch mm
TPT-775C-330 M12 1/2 M14 9/16 330 JT#1 3.72 1.69 8.35 212 82 4.3 121 1/4 3/8 10
TPT-775C-700 M8 5/16 M10 3/8 700 JT#1 3.72 1.69 8.35 212 82 4.3 121 1/4 3/8 10
TPT-776C-330 M12 1/2 M14 9/16 330 JT#1 3.30 1.50 10.4 266 84 4.3 121 1/4 3/8 10

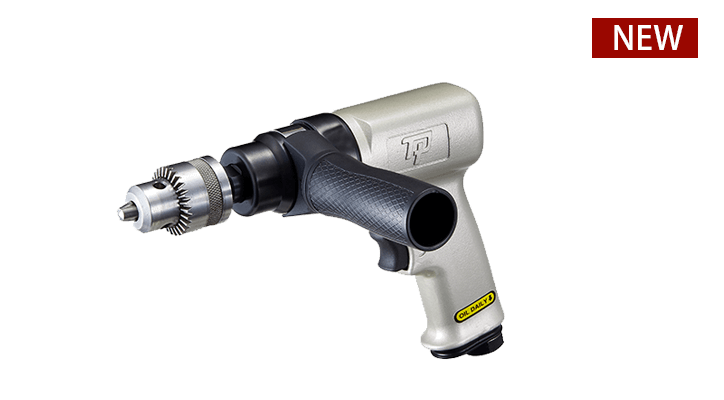

  • TPT-775C-330

    TPT-775C-330

    with 3/8" Key chuck
  • TPT-775C-700

    TPT-775C-700

    with 3/8" Key chuck

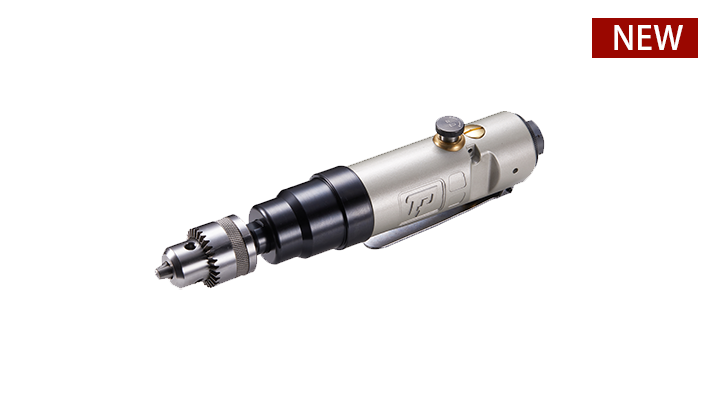

  • TPT-776C-330

    TPT-776C-330

    with 3/8" Key chuck
