Straight Type-SQ. Drive

Straight Type-SQ. Drive

MODEL SQ. Drive Bolt Capacity Torque Range 5~6kg/cm2 Free Speed Weight Length Nosie Level Average Air Cons. @Load Hose size Shut off
mm(inch) N.m (ft-lb) 5kg/cm2 6kg/cm2 kgs mm dB(A) m3/min ft3/min mm N/A
TDIS-80SH 12.7(1/2") M10-M12 40-70(29.5-51.5) 5800 6100 1.21 251 82 0.5 17.6 8 A
TDI-80SH 12.7(1/2") M10-M12 40-70(29.5-51.5) 5800 6100 1.21 251 82 0.5 17.6 8 N
TDIS-80S 9.5(3/8") M10-M12 40-68(29.5-50.1) 5800 6100 1.15 248 82 0.5 17.6 8 A
TDI-80S 9.5(3/8") M10-M12 40-70(29.5-51.5) 5800 6100 1.15 248 82 0.5 17.6 8 N
TDIS-70S 9.5(3/8") M10 28-47(20.6-34.6) 4700 5000 0.97 244 80 0.4 14.1 8 A
TDI-70S 9.5(3/8") M10 28-47(20.6-34.6) 4700 5000 0.97 244 80 0.4 14.1 8 N
TDIS-60S 9.5(3/8") M8-M10 20-35(14.7-25.8) 5700 6000 0.86 231 80 0.4 14.1 8 A
TDI-60S 9.5(3/8") M8-M10 20-35(14.7-25.8) 5700 6000 0.86 231 80 0.4 14.1 8 N
TDIS-50S 9.5(3/8") M8 14-28(10.4-20.7) 6500 6800 0.8 221 80 0.35 12.3 6.5 A
TDI-50S 9.5(3/8") M8 14-28(10.4-20.7) 6500 6800 0.8 221 80 0.35 12.3 6.5 N
TDIS-40S 9.5(3/8") M6-M8 10-19(7.4-14) 3900 4200 0.8 221 78 0.25 8.8 6.5 A
TDI-40S 9.5(3/8") M6-M8 10-19(7.4-14) 3900 4200 0.8 221 78 0.25 8.8 6.5 N
TDIS-30S 9.5(3/8") M6 6.5-13(4.8-9.6) 3900 4200 0.8 221 78 0.25 8.8 6.5 A
TDI-30S 9.5(3/8") M6 6.5-13(4.8-9.6) 3900 4200 0.8 221 78 0.25 8.8 6.5 N

* Shut off type: N: Non Shut-off; A: Auto Shut-off


  • TDI-40S

    TDI-40S

    3/8" Air Impulse Wrench, Non Shut-Off
  • TDIS-30S

    TDIS-30S

    3/8" Air Impulse Wrench, Shut-Off

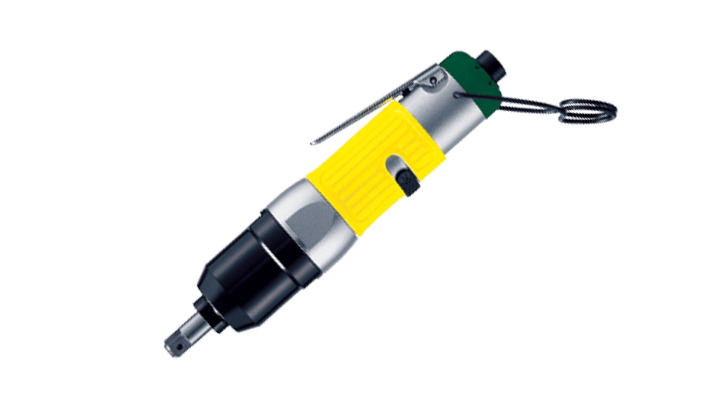

  • TDI-30S

    TDI-30S

    3/8" Air Impulse Wrench, Non Shut-Off
