Straight Type-Bit Shank

Straight Type-Bit Shank

MODEL Hex Size Bolt Capacity Torque Range 5~6kg/cm2 Bit Shank Free Speed Weight Length Noise Level Average Air Cons. @Load Hose size Shut off
mm(inch) N.m (ft-lb) mm 5kg/cm2 6kg/cm2 kgs mm dB(A) mc/min ft3/min mm N/A
TDIS-70SD 6.35(1/4") M8-M10 25-40(18.4-29.4) 9 4700 5000 0.97 247 80 0.4 14.1 8 A
TDI-70SD 6.35(1/4") M8-M10 25-40(18.4-29.4) 9 4700 5000 0.97 247 80 0.4 14.1 8 N
TDIS-60SD 6.35(1/4") M8 18-30(13.3-22.1) 9 5700 6000 0.86 235 80 0.4 14.1 8 A
TDI-60SD 6.35(1/4") M8 18-30(13.3-22.1) 9 5700 6000 0.86 235 80 0.4 14.1 8 N
TDIS-50SD 6.35(1/4") M8 13-26(9.6-19.2) 9 6500 6800 0.8 224 80 0.35 12.3 6.5 A
TDI-50SD 6.35(1/4") M8 13-26(9.6-19.1) 9 6500 6800 0.8 224 80 0.35 12.3 6.5 N
TDIS-40SD 6.35(1/4") M6-M8 9-17(6.6-12.5) 9 3900 4200 0.8 224 78 0.25 8.8 6.5 A
TDI-40SD 6.35(1/4") M6-M8 9-17(6.6-12.5) 9 3900 4200 0.8 224 78 0.25 8.8 6.5 N
TDIS-30SD 6.35(1/4") M6 5.5-12(4.1-8.9) 9 3900 4200 0.77 219 78 0.25 8.8 6.5 A
TDI-30SD 6.35(1/4") M6 5.5-12(4.1-8.9) 9 3900 4200 0.77 219 78 0.25 8.8 6.5 N

* Shut off type: N: Non Shut-off; A: Auto Shut-off

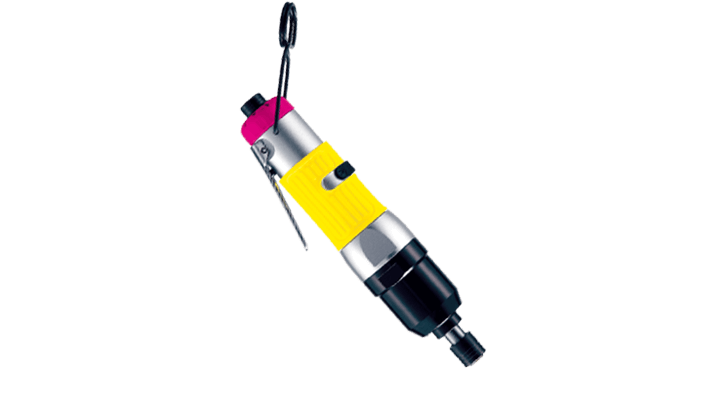

  • TDI-40SD

    TDI-40SD

    1/4" Air Impulse Wrench, Non Shut-Off
  • TDIS-30SD

    TDIS-30SD

    1/4" Air Impulse Wrench, Shut-Off

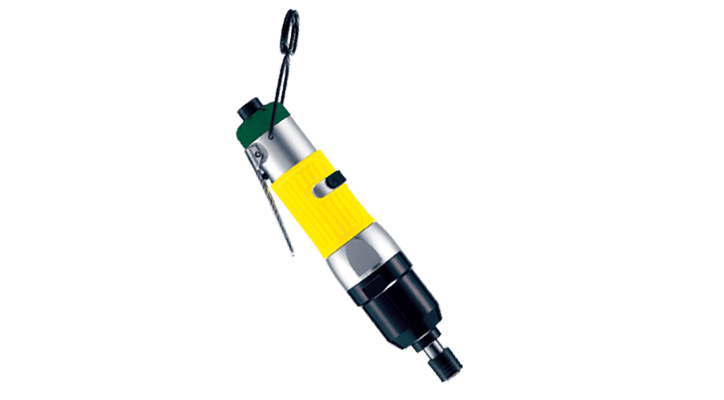

  • TDI-30SD

    TDI-30SD

    1/4" Air Impulse Wrench, Non Shut-Off
