Angle Type-Bit Shank

Angle Type-Bit Shank

MODEL SQ. Drive Bolt Capacity Torque Range 5~6kg/cm2 Bit Shank Free Speed Weight Length Noise Level Average Air Cons. @Load Hose size Shut off
mm(inch) N.m (ft-lb) mm 5kg/cm2 6kg/cm2 kgs mm dB(A) m3/min ft3/min mm N/A
TDIS-70RD 6.35(1/4") M8 18-29(13.3-21.4) 9 4200 4500 1.4 272 80 0.4 14.1 8 A
TDI-70RD 6.35(1/4") M8 18-29(13.3-21.4) 9 4200 4500 1.4 272 80 0.4 14.1 8 N
TDIS-60RD 6.35(1/4") M8 12.5-22(9.2-16.2) 9 4400 4700 1.3 264 80 0.4 14.1 8 A
TDI-60RD 6.35(1/4") M8 12.5-22(9.2-16.2) 9 4400 4700 1.3 264 80 0.4 14.1 8 N
TDIS-50RD 6.35(1/4") M6-M8 8.5-16(6.3-11.8) 9 4000 4300 1.2 253 80 0.32 11.3 6.5 A
TDI-50RD 6.35(1/4") M6-M8 8.5-16(6.3-11.8) 9 4000 4300 1.2 253 80 0.32 11.3 6.5 N

* Shut off type: N: Non Shut-off; A: Auto Shut-off

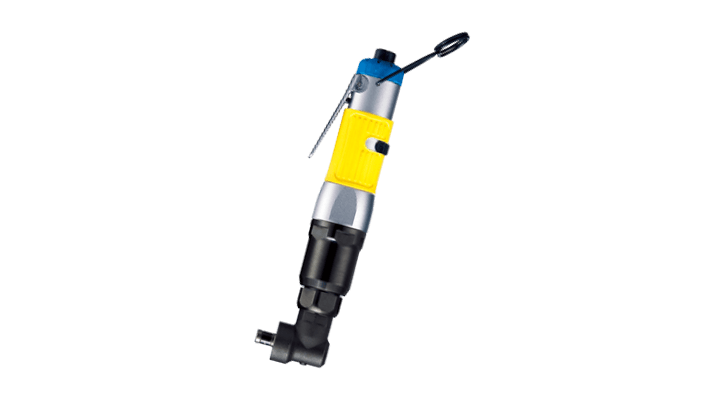

  • TDI-60RD

    TDI-60RD

    1/4" Air Impulse Wrench, Non Shut-Off

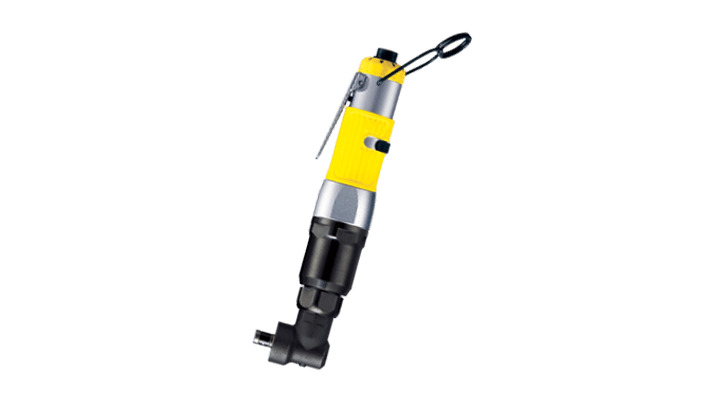

  • TDIS-50RD

    TDIS-50RD

    1/4" Air Impulse Wrench, Shut-Off
  • TDI-50RD

    TDI-50RD

    1/4" Air Impulse Wrench, Non Shut-Off
